Knuckle Boom Cranes / KDR 24 / YK5
Technical Features
| Lifting moment | 24 Ton-m |
| Lifting capacity | 3m Radüste 8 Ton |

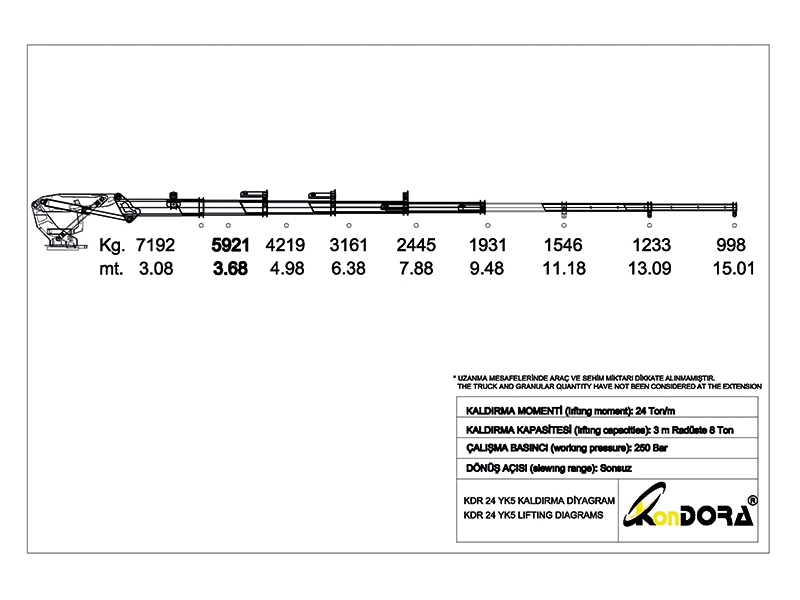

| Maxımum hydraulic horızontal outreach with knuckle booms | 1546kg / 11,18m |
| Maxımum mechanıcal horızontal outreach with knuckle booms | 998kg / 15,01m |
| Maxımum hydraulic horızontal outreach with 2. knuckle booms | No |
| Maxımum mechanıcal horızontal outreach with 2. knuckle booms | No |
| Number of hydraulic extensions with knuckle booms | 5 |
| Number of mechanıcal extensions with knuckle booms | 2 |
| Number of hydraulic extensions with 2.knuckle booms | No |
| Number of mechanıcal extensions with 2.knuckle booms | No |
| Counter weight | No |
| Oıl tank capacity | 125 |
| Gear dıameter | 700mm |
| Winch capacity | 4800 |
| The amount of vehicle and the amount of deflection are not taken into consideration at the reaching distances | |
